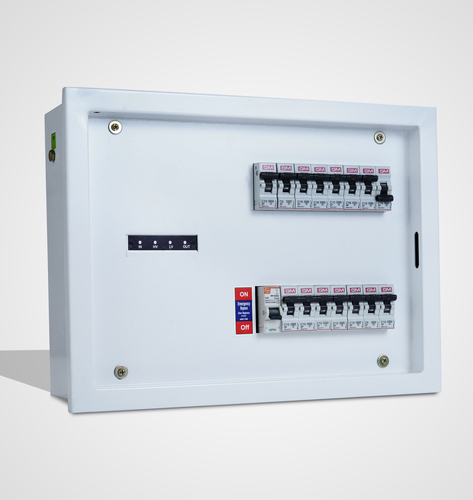

SP 12 WAY DB
SP 12 WAY DB
Model – Control DB
Dimension - 415 x 355 x 111
Application – Single Phase
Maximum Load details-Lighting-
. Maximum Rating of DB
Total Load - 6 KW- 24A (maximum up to 1.5 ton A/c)
Number of ways (Modules)-12
. Working Voltage range
Input voltage range-160V -260 V, Output voltage range– 160V-260V Low voltage trip at below <160V High voltage trip at above >260V
. Time delay in seconds for turn on protection
lighting and power (all circuits) – 30s
. Bypass arrangements
Available for all circuits
. Input voltage display
LED Display Available
. Dimension in mm
Length - 415 Height - 355 Depth – 111
